Database Caching Modes - 12c

12.1.0.2 has a new feature called Full database caching.

Caching can be of two types

1 . Default one

2.  Full Database Caching

Default Database Caching

In the default mode if the cache has enough space to accommodate full database then only full database is cached .


Following information has been taken from Oracle Docs

What if we dont have space in the default caching mode?

• Smaller tables are loaded into memory only when the table size is less than 2 percent of the buffer cache size.
• For medium tables, Oracle Database analyzes the interval between the last table scan and the aging timestamp of the buffer cache.
  If the size of the table reused in the last table scan is greater than the remaining buffer cache size, then the table is cached.
• Large tables are typically not loaded into memory, unless if you explicitly declare the table for the KEEP buffer pool.

Full Database Caching

Force Full Database Caching  Oracle Database caches the entire database in memory when the size of the database is smaller than the database buffer cache size.

All data files, including NOCACHE LOBs, are loaded into the buffer cache. This feature can drastically improve database performance when performing full table scans or accessing LOBs.

Consider using force Full Database Caching Mode in the following situations:

• The logical database size (or actual used space) is smaller than the individual buffer cache of each database instance in an Oracle RAC environment. This is applicable for non-Oracle RAC database as well.
• The logical database size is smaller than 80% of the combined buffer cache sizes of all the database instances for well-partitioned workloads (by instance access) in an Oracle RAC environment.
• The database uses SGA_TARGET or MEMORY_TARGET.
• The NOCACHE LOBs need to be cached. The NOCACHE LOBs are never cached unless force Full Database caching is used.

Demo

SGA INFORMATION

Testing:

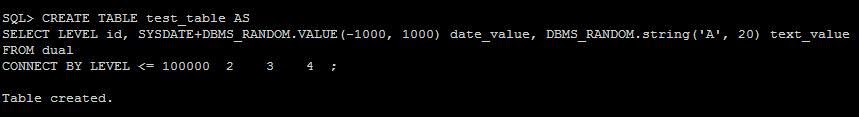

Lets create a test table and verify how it behaves and what wait events are observed in the trace file

For Each and every run we have enabled captured trace

For the first Run

For the Second and third run

If you see that the wait event on the first run was Db file scattered Read. After the second and the third run it has totally gone and everything is read from cache.

Clone Pluggable Database - Oracle 12c

Cloning Pluggable Database in Oracle 12c

Cloning databases in versions prior to 12c was a challenge. We need to use RMAN to perform cloning. Now its made very easy using one single command.

Create pluggable database TARGET_NAME FROM SOURCE_NAME


Lets see how to clone a new database

Source Name  : ORC1
Target Name : ORC3


1. We should be logged in as CDB$ROOT ( Container DB) to perform this task

2. Lets create & insert some sample data in ORCl database

3. Before cloning we need to make sure that we open the source database in READ ONLY.

This step is MANDATORY!!!!

4. Clone the Pluggable Database

Use the CREATE PLUGGABLE DATABASE FROM CLAUSE to create the clone DB

Datafiles have been created


























View the Status

By default the new pluggable clone database will be in MOUNT state.

5. Post Tasks

Open the Source Database & Target Database to READ WRITE Mode

ORC1 & ORC3

6. Final Verification

Lets check if the table exists in the newly created database

Alert Log

Creating Users in Oracle 12c

User Creation - 12c

Starting from Oracle 12c there are two kinds of users.

1. Common User

2. Local User

Common User

1. Should Created as CDB$ROOT . You have the option to specify if you want to create the user in all container databases.

2. Username should be prefixed with c##

3. If we specify default tablespace, Quota etc we should ensure that they are present in PDB's as well.

Local User

1. Only local to a particular PDB

2. It will not be created in other databases.

3. We should alter the session and create the user.

Common User

CDB_USERS dictionary displays user information whether it is a common user,con_id etc.

CDB_USERS Dictionary



















Connect Common User to a PDB

Even though you have granted create session to C##CHANAKYA you are not able to connect to pluggable database.  Why?

This is because the user is not having create session privilege for that PDB. Make sure you use the below command to grant the privilege.

grant create session to username container=ALL;

.

Local User

Now lets create a common user in PDB and check

We cannot connect to other PDB's because user is only local to that particular PDB. In our case

India user was created only in ORC2 hence we cannot connect to ORC1.

By using the CONTAINER clause we can specify in which particular PDB users should be created.

Connecting to PDB using Sqlplus

How to connect to PDB using sqlplus ?

We can connect to PDB's in 12c using two methods.

1. sqlplus username@PDBNAME

2. sqlplus username/password@HOSTNAME:portno/servicename

To connect as sys as sysdba

1. sqlplus username/password@HOSTNAME:portno/servicename


sqlplus username@PDBNAME

sqlplus username/password@HOSTNAME:portno/servicename

To connect as sys as sysdba

Datapump and Oracle 12c PDB - ORA-39087

Datapump using PDB

If you are planning to export some data from PDB you need to make sure you have TNS entry in TNSNAMES.ORA. This is a prerequisite.

Lets now connect to PDB using expdp utility.

This is because there is no DATA_PUMP_DIRECTORY for the PDB.

Lets create a directory at the OS level and also at the DB level.

Lets test now by explicitly specifying the directory parameter.

Now the export is successful.

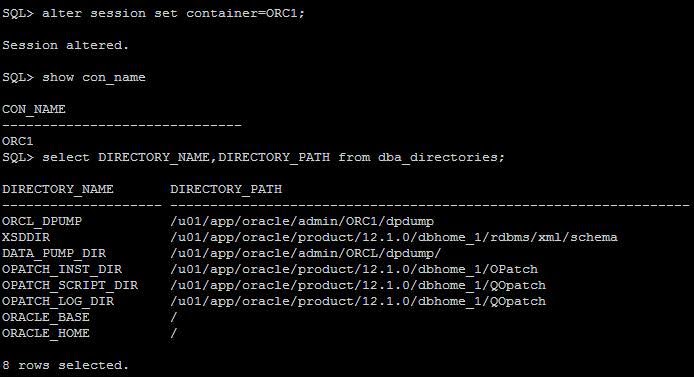

The New directory will only be displayed only in the corresponding container database.

Below screenshot will explain you the difference.

Connect to  the Container database ORC1

View the history of PDB startup time

How to view the history of PDB startup?

We can view the startup of PDB's using DBA_HIST_PDB_INSTANCE

How to View the Datafiles in PDB?

How to view the datafiles & tempfiles in PDB?

If we have created PDB's the easiest way to view the datafiles in using v$datafile.

We also can connect to the CDBROOT and list details of all datafiles which include PDB's as well.

To view the tempfiles of both PDB's and CDB's we can query v$tempfile as we do in other releases.

In case if you want to view only the details of individual PDB's you need to set the session to that particular database and view them.

12.1.0.2 - Pluggable Database Automatic Restart

Pluggable Database Automatic Restart - 12.1.0.2

In Oracle 12c if we shutdown or startup the database only the container database starts in READWRITE mode. All the pluggable database remain in MOUNT state.

We need to use ALTER PLUGGABLE DATABASE ALL OPEN to open all the PDBS.



As of 12,1.0.1 to automatically start the PDBS in READ WRITE mode we need enable a trigger .

In 12.1.0.2 Oracle has introduced a new way of starting the PDBS.

 alter pluggable database PDBNAME save state;

Lets test the feature.

To save the state of all PDB's we can use the below command

ALTER PLUGABBLE DATABASE ALL SAVE STATE;

Let's shutdown the database and check if PDB's open in READ WRITE Mode automatically.

All Pluggable Databases have automatically started in READ WRITE mode.

We can view the DBA_PDB_SAVED_STATES to view the saved state.

select CON_NAME,INSTANCE_NAME,STATE from dba_pdb_saved_states;

In case if you feel that you need to remove the save states we have an option for that as well.

ALTER PLUGGABLE DATABASE ALL DISCARD STATE;

Lets test this as well.

How to Open Pluggable database in 12c?

How to Open Pluggable database in 12c?

1. Start the Database

2. Check the Status of the PDBS and start up using

ALTER PLUGGABLE DATABASE ALL OPEN;
